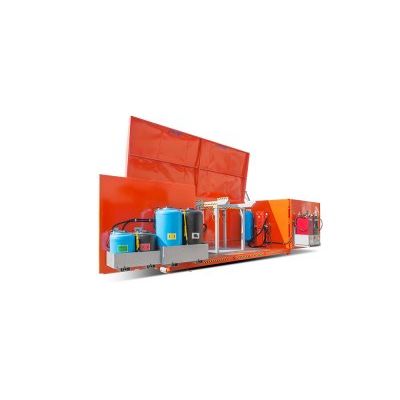

Iris-Mec - Model ISC -Mobile Vehicle Fluid Drainage System with Container
FromIris-Mec Srl
Pneumatic drainage system complete with container, CTN and ISK-NEW. Drainage system includes 4 pneumatic diaphragm pumps, including BRL arm for oil collection and PFT-MONO with 1 diaphragm pump and air drill.
Most popular related searches
vehicle fluid removal
drainage system
vehicle fluid
vehicle drainage system
air pump
oil drainage
drainage pumping
drainage pump
pneumatic diaphragm pump
air drill
CTN – CONTAINER
Roll on-off body with two side doors, internal fixed ramp complete with anti-slip grids and a base for liquid containment. Dimensions: cm 665 x 245 x h 215
ISK
- Console Pneumatic
- Brakes oil drainage Air pump 11 gpm(UK)
- Engine oil drainage Air pump 11 gpm(UK)
- Gear box oil drainage Air pump 11 gpm(UK)
- Windscreen wiper water drainage Air pump 11 gpm(UK)
- Radiator’s water drainage Air pump 11 gpm(UK)
- External tanks Driven by a processor
- N° cycle / hour 6/10
- Max working pressure 87 psi
- Max flow 11 gpm(UK)
- Weight 617.3 lb
- Overall dimensions 39” x 25.6” x h. 53”
PFT-MONO
- Petrol drainage Air pump 11 gpm(UK)
- Récupération gas-oil Air pump 11 gpm(UK)
- Puncher Air drill 0.67 hp
BRL
- Drainage arm with basin Length 4 m - l 12
- Tubes for drainage of brakes oil Tube and bellows made out of special rubber
- Overall dimensions 1500 x 1600 x 1800 mm
Standard quipment
Adjustable suction pressure
Optional
