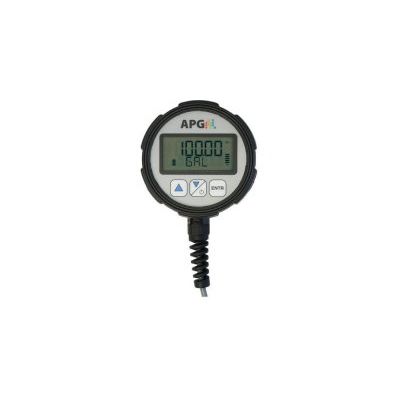

APG - Model Series MND -Modbus Network Display
The MND Modbus Network Display provides a local display that can be wired to a local Tank Cloud network, or modbus sensor, displaying readings from any of the sensors in the network (up to ten). It is easy to use and very flexible. The MND can operate in either a master or sniffer mode. With the ability to listen in on sensors or poll sensors for current readings, the MND provides a valuable display option for your network.
Powerful Display In The Palm Of Your Hand
The MND Modbus display works with up to 10 of our Modbus sensors as a master, as a slave, or even as a power source.
- Enclosure Protection: IP67
- Input: Modbus, Tank Cloud Master, Tank Cloud Sniffer
- Mount: Handheld, Panel Mount
- Output: 0-5 VDC, 4-20 mA, Modbus,Tank Cloud Slave
splay
The MND can do a lot more than simply display its sensors readings. A few of our favorites include the ability to alter sensor settings using the Modbus registry and to power a sensor with its batteries. Works on any Modbus network.
Very Easy To Use
The MND Tank Cloud Modbus Display presents a lot of possibilities, but keeps operation simple. The display is controlled by three buttons that allow you to cycle through, select options, and input data.
For Local and Remote Applications
The MND is a local Modbus display that is capable of providing display functions to our remote Internet-connected sensors or acting as the Modbus Master in an exclusively local application.
Performance
- RS-485
- 9600 baud (Modbus RTU)
- Display readings
- Volume
- Level
- Distance
- Pressure
Programming
- Programmable Features
- User selectable units of measure
- Sniffer mode
- Master mode
- Auto-Off
Electrical
- Battery Option
- 9V Lithium
- 3.6V Lithium
- Low battery detection with 25% increments
- External Power Option
- 9-28 VDC
Physical
- Size
- 3.25” x 1.6” (82.6 x 40.6 mm)
- Display
- 5 digit LCD, 0.4 in. digits
- Approvals
- N/A
Connectivity
- Output Options
- 4-20 mA
- 0-3 VDC
- 1 SPDT Relay
- 2 NO or NC Relays
Environmental
- Environmental Protection
- IP67
- Storage Temp
- -30º - 160ºF (-30º - 71ºC)
- Operating Temp
- 0º - 160ºF (-18º - 71ºC)
