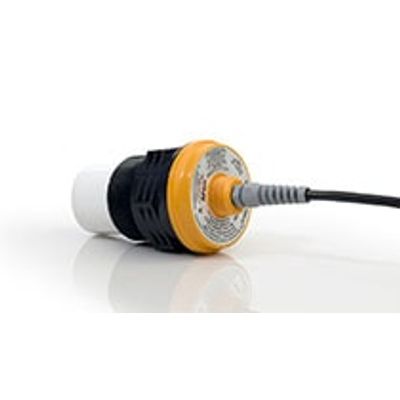

APG - Model Series MNU -Modbus Ultrasonic Level Sensor
The MNU series sensors utilize standard Modbus RTU protocol (RS-485). The MNU is designed to work as a slave device. With the ability to measure volumn and distance, the MNU is the ideal sensor for your application.
Most popular related searches
ultrasonic level sensor
ultrasonic level
level sensor
ultrasonic sensor
level transmitter
level transmitter sensor
ultrasonic level transmitter
ultrasonic transmitter
Performance
- Available Ranges
- 4 to 79 in.
- 1 to 25 ft.
- 1.5 to 40 ft.
- Accuracy : ±0.25% of detected range
Programming
Method
- Online Data Portal
- Modbus Register
Electrical
- Operating Voltage : 9-28 VDC
- Total Current Draw : 22mA
Physical
- Housing
- PC/PBT blend upper housing
- Ceramic transducer, PVDF faced
- Mounting
- 1 in., 2 in., or 3 in. NPT
Connectivity
- Output : RS-485 Modbus RTU
- Data Portals : Online LAN
Environmental
- Operating Temperature : -30 to 140° F
- Temperature Compensation : Internal
- Protection Rating : NEMA 6P
