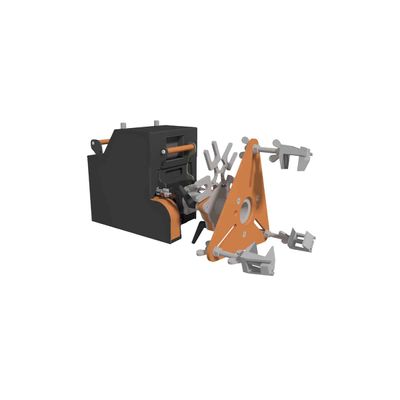

Model 1-TLX -Pipe Cleaning Setup

SHARE

Introducing the 1-TLX Pipe Cleaning Setup, featuring the highly efficient Peinemann 1-TLX feeder, FRL unit and more. Designed to revolutionize pipe cleaning operations, the 1-TLX feeder offers exceptional performance and unmatched versatility. The 1-TLX feeder stands out as an extraordinary solution, combining lightweight design, remarkable versatility and enhanced strength. With a 30% weight reduction compared to previous models, it offers improved maneuverability without compromising durability. Its modular design allows for easy customization and maintenance, ensuring optimal functionality. Experience the power of the 1-TLX feeder as it delivers up to 200 kg (441 lb) push/pull strength in slow gear mode. This capability enables tackling even the toughest pipe cleaning tasks with ease and efficiency.

Most popular related searches
pipe cleaning
  • LIGTHWEIGHT COMPONENTS
  • ALL-IN-ONE POWERHOUSE
  • HIGHLY VERSATILE

The 1-TLX Pipe Cleaning Setup features the efficient Peinemann 1-TLX feeder, FRL unit and more. This 1-TLX feeder delivers exceptional performance, with a 30% weight reduction for improved maneuverability without compromising durability. Its modular design allows easy customization and maintenance. Experience its powerful 200 kg (441 lb) push/pull strength in slow gear mode for tackling tough pipe cleaning tasks.

The 1-TLX is built from the TLX Drive Unit and 1-TLX conversion kit. The 1-TLX can easily be configured into a dual (2-TLX), triple (3-TLX), quadruple (4-TLX) or quintuple (5-TLX) lance feeder with the use of additional conversion kits. It is important to note that when configuring the 1-TLX, the TLX Drive Unit does not include the cover. The special 1-TLX cover is included in the 1-TLX conversion kit. This is because the special cover for the 1-TLX is higher to accommodate the second air motor.

General
Length (drive unit): 46.5 cm (18.3 in)
Width (drive unit): 26.5 cm (10.4 in)
Height (drive unit): 42.0 cm (16.5 in)
Weight (drive unit incl. cartridges and motors): 27 kg (59.5 lb)
Hose feed rate: 12.5 – 33 cm/s (4.9 – 12.9 in/s)
Max. push/pull force: 200 kg (441 lb)
Pitch adjustment range: N.a.

Motor
Motor model: Atlas Copco LZB33-L-AR004-50 (2x)
Max. output: 0.25 kW (0.34 hp)
Min. air pressure: 3.0 bar (43.5 psi)
Operating air pressure: 6.3 bar (91.4 psi)
Max. air pressure: 7.0 bar (101.5 psi)
Max. air consumption: 7.9 l/s (16.7 cfm)
15.8 l/s (33.5 cfm) in total with 2 motors

Stall torque: 24 Nm (17.8 ft lb)
Vane type: Lubrication free

Hose specifications
Hose size: 10/4 – 20/6 (3/8” – 3/4”)
Hose outer diameter: 20 – 35 mm (0.79 – 1.38 in)
Max. hose coupling diameter: 55 mm (2.17 in)
