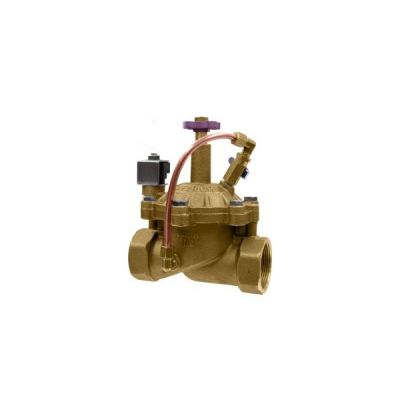

Model 1000 Series -Brass Forward-Flow Valves
The Superior 1000 Series is an electric valve with forward flow design, engineered with chemical resistant components to ensure consistent valve operation for any recycled water application. Available Sizes: 3/4` to 3`.
Most popular related searches
water recycling
water valve
self-cleaning filter
brass valve
water recycling system
electric valve
valve operator
filter cleaning
ball valve
water recycling application
- NEW! Recycled Water HCRTM Diaphragm offers enhanced durability.
- Manual internal bleed ball valve allows for quick and easy water bleed downstream.
- Heavy Duty Copper Tubing provides added protection against ripping and tearing.
- Self-cleaning filter and metering rod prevent debris from entering the inlet orifice to diaphragm chamber.
- Two-Piece Diaphragm Assembly with Superior ShieldTM assembly offers protection by removing the diaphragm from flow path.
- Stainless Steel internal metal components are corrosion resistant.
- Purple Cross Handle comes standard to identify valve as a carrier of recycled water.
- Complete Recycled Water Solution!
| 1000075 : | 3/4" 1000 Recycled Water Irrigation Valve |
| 1000100 : |
1" 1000 Recycled Water Irrigation Valve |
| 1000125 : |
1-1/4" 1000 Recycled Water Irrigation Valve |
| 1000150 : |
1-1/2" 1000 Recycled Water Irrigation Valve |
| 1000200 : |
2" 1000 Recycled Water Irrigation Valve |
| 1000250 : |
2-1/2" 1000 Recycled Water Irrigation Valve |
| 1000300 : |
3" 1000 Recycled Water Irrigation Valve |
| Standard 24 VAC | |
| In-rush current: 0.45 A (10.8 VA) | |
| Holding current: 0.30 A (7.2 VA) | |
| Optional Low Watt 24 VAC | |
| In-rush current: 0.33 A (7.9 VA) | |
| Holding current: 0.20 A (4.9 VA) | |
| Optional 110 VAC | |
| In-rush current: 95 mA (10.5 VA) | |
| Holding current: 65 mA (7.2 VA) | |
| |
|
| Operating Ranges | |
Flow: 5-320 gpm |
|
| Pressure: 20-200 psi |
