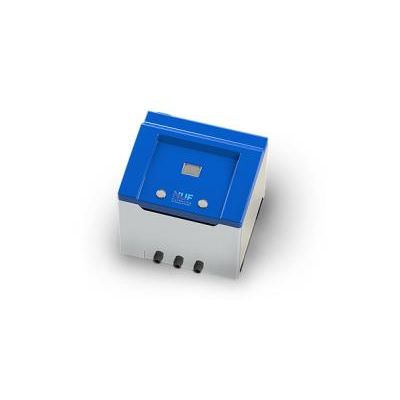

Model 10A -Fully Automated Swimming Pools Purification System

The NUFilter removes all bacteria, pathogens, organic matters and suspended solids from the pool water in one single pass, thanks to the 0.03 µ absolute filtration rate of the NUF® membranes. Only a risible concentration of free chlorine (0.2-0.3 ppm) is required to keep disinfectant action – while combined chlorine, trihalomethanes and all harmful disinfection by-products are drastically reduced. Water flows at low pressure in a circulation loop to the NUFilter while the purification process takes place by simple mechanical size exclusion on the membranes – without use of chemicals, Ozone, UV or other treatment. Disinfectants and other salts permeates the membranes and are recycled to the pool. All pollutants are expelled from the system by a simple and regular backwash with the pool water.

• Automatic backwash activation by deltaPi or time (the earlier)
• Up to 10 m3/hr circulation capacity
• PLC – one year 9V battery (no need of power connection)
• Dimensions (L x W x H in cm): 94 x 80 x 80

• The only affordable ultrafiltration system available in the field of pools water treatment
• Unbeatable water clearness and quality (< 0.1 NTU)
• Drastic reduction of chemical consumption
• Cut recycling water capacities and energy costs by up to 50% (as per DIN 19643-4)
• Enjoy swimming in crystal clear water with an imperceptible chlorine impact
