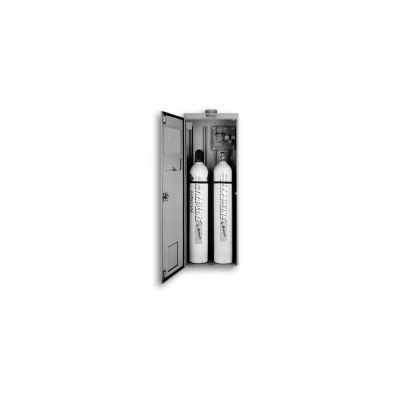

Model 1170 Series -Gas Cylinder Cabinets
Matheson Model 1170 is our standard gas cabinet series with a flat top design. The new construction is optimized for economy, without compromising safety or quality.
Most popular related searches
gas cylinder storage
electronic cylinder scale
fire sprinkler head
gas cylinder cabinet
cylinder scale
guillotine damper
fire sprinkler
exhaust stack
safety glasses
gas controller
- Automatic door closure to ensure containment of leaks
- Modular U-Channel Supports make installation of gas control panels, cylinder supports, shelving, and other equipment easy.
- Lockable access panel and wire reinforced safety glass viewing window have steel frames and are fully gasketed.
- Non-protruding paddle type latch prevents accidental opening and snagging. It slams and latches at three points and is fitted with a lock for security.
- Neoprene gaskets fit snugly around door to ensure a positive seal
- Standard inlet air louver or optional diffuser plate fitted with an inlet filter (p/n VEN-0101-XX) lets air into the cabinet.
- Flat-top design with exhaust stack.
- Fire sprinkler head, for extra protection with a fuse rating of 155°F.
- Cylinder restraints to ensure that all cylinders are held securely in place during storage and operation
- Rugged exterior construction of 12-gauge cold rolled steel with welding seams.
- Interior and exterior is finished with gray 2-part polyurethane paint.
- Low profile, one-inch reinforced threshold makes cylinder installation and removal easy.
- Adjustable Cylinder Shelf (see table for part number) – mounted on the U-Channel tracks. The shelf provides a convenient means of installing small cylinders. Perforations in the shelf allow cabinet air to sweep around the entire cylinder.
- Fusible Link (see table for part numbers) – installed in the center of the cabinet door. Offers immediate response in the event of a fire. Once the heat melts the fusible link, a guillotine damper blocks the inlet air supply.
- Cylinder Scales – recommended for use with all liquefied gases. Provides the weight of contents remaining in the cylinders. Manual and electronic cylinder scale models are available.
