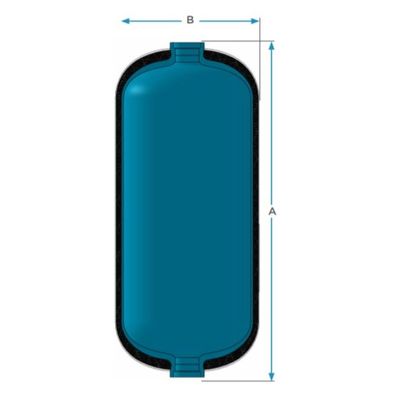

Model 17 Od/435 Mm 350 Bar -Large Diameter Composite Pressure Vessels
While Steelhead has products of all sizes, one of our most demanded products are our larger, 5,000 psi/350 bar cylinders. These products are available and come a standard threaded steel 2.0 inch (51 mm) diameter port opening.
Most popular related searches
Gas Transportation
This innovative product can be a cost-effective and safe way to transport compressed gas. Multiple cylinders installed in a trailer or in a transportable container can serve as a mobile pipeline.
Certifications
These vessels are available as DOT SP and pending certification for DNV GL.
- Type 3 Pressure Vessel
- Maximum Operating Pressure: 5,000 psi (345 bar)
- Minimum Burst Pressure: 15,000 psi (1,034 bar)
- Port Opening: up to 2 inches (51 mm) in diameter
- Safety: Benign leak-before-burst avoids catastrophic failure
- Compliant with US/DOT and UN/ISO 11119-2 requirements
- Liner: Seamless, impermeable 6061-T6 Aluminum
- Structural Shell: Carbon fiber and epoxy composite
- Protective Barrier: Glass fiber and epoxy composite
- Neck or strap mounting available
- High thermal conductivity of Aluminum liner achieves a better fill capacity under fast-fill conditions
- Corrosion Resistant: Not prone to rusting like steel
