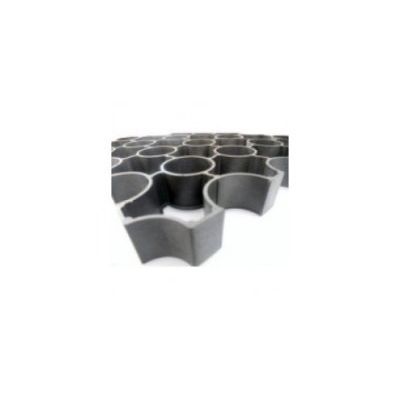

Model 1sqm -R-Pave Permeable Paver Grid Black

The system design provides a lightweight, strong structure making it easy and quick to install and suitable for a wide range of applications including paths, driveways, car parking areas and access routes. Correctly installed, R-Pave has been demonstrated to withstand up to 320T/m2.

R-Pave offers unimpeded flow to surface water, reducing the rate of runoff and potentially saving the costs of drainage installation. It is effective in minimising water runoff quantity, improving water quality and providing clean water for biodiversity.

R-Pave porous paving grids are connected by a patent-pending interference structure and installed on a porous base course. Their role is to transfer loads from the surface to the engineered course base below.

This is the new, recycled, plastic sustainable urban drainage system (SUDS) compliant solution. Using a patent-pending design to avoid breakage problems on installation, R-Pave is a high performance, durable and virtually maintenance free solution for use with grass or gravel.

R-Pave is manufactured by R3 Products in the UK. Other companies such as Hebden 40, Hebden 401, Hebden 402 or Ecopaving have re-branded this product as their own. Hebden 402 and Ecopaving brand is actually R-Pave.

• Fully compliant with new planning requirements surrounding driveways to the front of properties
• Environmentally friendly
• Prevents erosion and wear on footpaths
• Interference connections create stronger inter-grid unions
• Strengthens grassed areas
• Minimal dimensional change due to temperature
• Resistant to water, corrosion and cracking
• Holds gravel and prevents rutting
• Strong geometric design ensures high compression strength

• Green parking
• Emergency vehicle access
• Temporary and permanent driveways
• Quick fit shed bases
• Embankments
• Green roofs
• Tree beds
• Golf walkways
• Caravan parking
• Menages
• Hard standing

• SUDS compliant, R-Pave with grass or gravel can improve project ratings in accordance with BREEAM and the Code for Sustainable Homes (CfSH)
• When laid, it offers excellent water permeation through the surface. It reduces the potential of clogging compared to an in-situ concrete paving system
• Durable, non-rotting and weather resistant with an expected product life in excess of ten years
• The lightweight, interlocking profile design enables ease and speed of installation. Optimal laying time is 100sqm per person per hour onto a prepared base
• Load bearing capability at 250 to 320T/m2, on a correctly specified and compacted sub-base
• Low maintenance and cost effective throughout product life
• NBS specification support in accordance with Q23 for gravel surfacing or Q30 for seeding/turfing
• R-Pave conforms to Part M of the building regulations is Disability Discrimination Act compliant when correctly laid and maintained
• R-Pave is manufactured using 100% UK plastic waste and is fully recyclable at the end of its useful life

• Dimensions 33cm x 33cm x 4cm
• Wall thickness 3mm
• Wall height 40mm
• Weight per tile 0.57kg
• Weight per sqm 5.13kg
• Compressive strength up to 10T axle load in accordance with DIN 1072
• Load bearing capacity up to 320T/m2
• Temperature range from -50 up to +90 degrees celsius
• Resistant to acid, leaching, alcohol, oil and petrol
• Groundwater neutral, weatherproof and UV resistant
