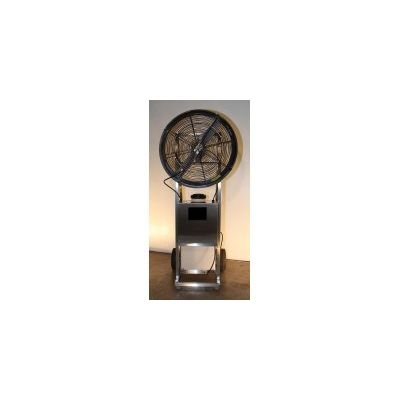

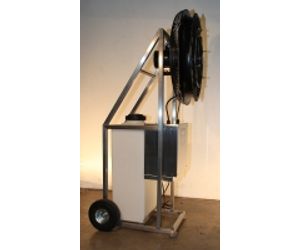

Model 20 Gallon -Port-A-Chill Stainless Steel Portable Misting Fan
This is an affordable means to give instant heat relief to any area. With a 20 Gallon Tank, the unit is truly portable no need for water tap or other connected water supply! The fan is also equipped with a garden hose connector so that it can be hooked to a constant water supply for continuous operation. Simply fill the tank with water, plug it into a standard 120 volt outlet and sweltering temperatures can be reduced by as much as 30 degrees!.
With a 24" High Velocity 8,600 CFM fan and equipped with a 1000 PSI pump for a fine "fog", the fan can reach areas up to 60 feet away with cool refreshing air. The Port-a-Chill frame is made of heavy Stainless Steel tubing and comes standard with oversized pneumatic "flat free" wheels for easy movement over rough and uneven terrains. The unit can be transported easily by vehicle in either a standing or horizontal position.
You can expect up to 8 hours of refreshing fog up to 6 hours from a single fill up of the 20 gallon tank. Running time can be increased by reducing the number of nozzles being used with nozzle plugs.
The Advanced Systems Port-a-Chiller is perfect for cooling:
- Sports Teams
- E.M.S. First Aid Stations
- Military
- Horse Stables
- Warehouses
- Foundries
- Festivals
- Amusement parks
- Construction sites
- Golf Courses
- Pump: 0.50 GPM Commercial grade pump. 120V / 60Hz 5 AMP - 800-1000 PSI Operating Pressure. GFCI Plug.
- Fan: High Performance industrial 24 inch fan which produces 8,600 CFM. Totally enclosed motor, permanently lubricated split capacitor.
- Misting Ring: 18" Stainless Steel Mist Ring with 6 .008" brass and stainless steel nozzles.
