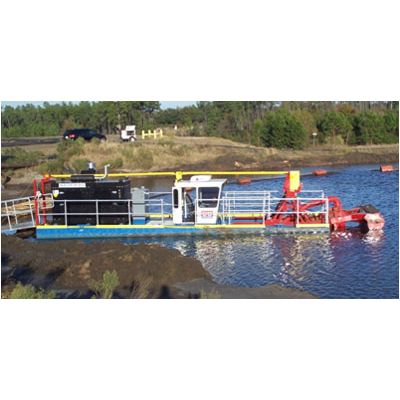

Mud Cat - Model 2010 - Diesel Driven Auger Dredge
The Mud Cat™ 2010 provides 22,000 inch-pounds of auger torque for difficult sediment removal applications. This auger dredging system was designed to perform in heavy process and remediation type projects. Lagoon dredging can be achieved at depths up to 20 feet. The 325HP diesel with its hydraulically driven submersible slurry pump is designed to pass 3 inch solids while delivering 2500 GPM for every 100 feet Total Dynamic Head. Harvesting production for this type of dredge equipment will be 129 cubic yards per hour at 25% solids content.
Throughout the world, the Mud Cat name has a reputation for quality and reliability. In keeping with this high standard, LWT has designed the Mud Cat 2010 to remove solids and sediments from applications that require an aggressive dredging operation.
The Mud Cat 2010 has been designed for applications such as:
• Industrial Processes
• Power Generation
• Environmental Remediation
• Mining
The man-operated Mud Cat 2010 features a 325 HP diesel-powered power unit and a dedicated hydrostatic high-pressure circuit to drive a submersible pump with a nominal performance of 2500 GPM at 143 feet of head pressure, passing 3-inch solids. Principal features include an operation depth of 20 feet, a high-torque single motor horizontal cutter assembly, centrifugal closed impeller, a triple sheaved traverse winch, and a cylinder controlled elevation linkage for the cutter assembly. The Mud Cat 2010’s flotation system is comprised of baffled 10 gauge steel pontoons filled with two-pound density foam and matched with a heavy-duty structural steel frame coated with epoxy paint. A comfortable heated and air conditioned operator cab includes fingertip controls for travel and pump speed.
LWT’s Mud Cat 2010 can be equipped with upgraded options and accessories to optimize its function and capabilities.
Contact your local LWT sales representative or visit our website at www.lwtdredge.com to find out how LWT can benefit you with your next project. We also offer rental dredges for short-term applications.
