Top Syringe Mfg Co Pvt Ltd.

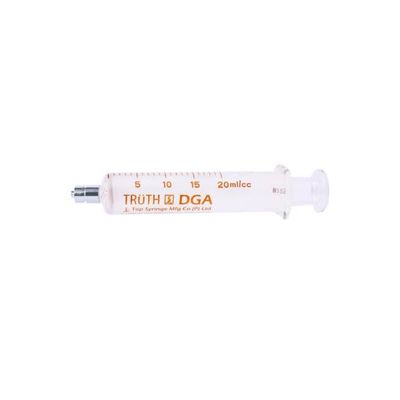

Model 20ml DGA -Glass Syringe
The syringe is made from heat resistant borosilicate glass. They confirm to ISO594/1 ; 595/2 The material and construction is resistant to breakage from shock and sudden temperature changes. It is annealed and tested until free of internal strain, to with stand repeated washing with hot water. Reinforced at luer lock tip and barrel base, The points at which most breakage occurs. The syringe cylinder plunger fit is leak proof and meets the requirements of Federal specification GG-S-92 lb /A-A-54840/ISO7886 for any leakage or backflow & for smooth plunger movement. In compliance with IEC-60567, IEC-60475 & ASTM-D 3613 Plunger is individually ground and fitted to barrel for smooth movement with no back flow.
Most popular related searches
dissolved gas analysis
borosilicate glass
gas analysis
luer lock syringe
plunger cylinder
wash water
autoclave
backflow
- Barrel rim is flat on both sides to prevent rolling and is wide enough for convenient finger tip grip.
- The syringes are available in universal fit or custom fit design. The custom fit syringes are uniquely numbered for matching.
- The syringe metal luer lock tip meets the specification of the American national standards for medical material luer taper fitting performances ISO 594 (Earlier HIMA MD 70.1 – 1983)
- The fitting is made from chrome- plated brass and fits all female luer lock fitting.
- The Syringe is clearly marked with appropriate graduation.
- The graduation and logo are permanently fused on to the glass. This accounts for a lifetime accuracy and legibility.
- The Syringe Plunger is colored beveled rimed to facilitate dosage measurement.
- The Syringe reinforced Flanges which is flat on two sides prevent the syringe from rolling.
- Size: 20ml
- Cat No: 09-10-02-07
- Termination: Metal Luer Lock Tip
- Graduation Major: 5.0ml
- Graduation Minor: 1ml
- Graduation Type: Permanently fused
- Autoclavable: Yes
- Liquid Path: Borosilicate Glass, Nickel Chrome Plated Brass
- Certification: No
- Volume Variation: ±4%
- Sterility: Non Sterile
- Piston Outside Diameter: 20.10mm ±2mm
- Barrel Out Side Diameter: 32.75mm ±0.75mm
- Overall Length: 150.00mm ±1.00mm
- Graduation Increment: 1.0ml
- Pack Size: 1pcs
