Model 2100 -Tripod, Gantry Scanner or Robot Mounting
Designed for fast and accurate nondestructive inspection of structures, components and repairs.
Lightweight and easy to use.
12-bit hi-definition sensor and diffraction limited optics.
Easily programmable image processing macros in LaserNDT 1.8.0 Software Suite for improved operator image analysis and reporting.
Easily mounts to scan gantries, robots, crawlers, tripods, vacuum attachments, and customer defined test configurations.
All Mode Operation: Thermal, Vacuum, Vibration and Pressure Stressing.
Test Part Stressing Systems, Test Chambers, Gantries, Workstations, and Robotic Scanners.

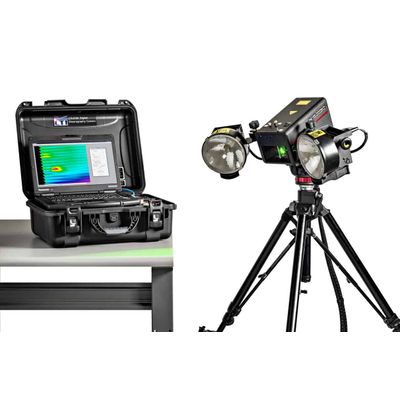

Shear camera with a built-in 100 mw laser light source (Class IIIa), image processing computer, interconnect cables, tripod, transit case and Operator and Applications Manual
Thermal Stress Systems TES-50 (500W) or TES-200 (2kW) with software control and adjustable radiant beam spread.
Table Mount, remote control Pan & Tilt, MQTT Robot Integration Software
12.0 x 4.0 x 5.5 in / 30.5 x 10.2 x 14.0 cm
6.2 lbs. / 2.8 kg
1628 x 1236 12 bit/30 fps
100 to 240 VAC, 50/60 Hz20 amps maximum (with TES-200)
Shearography testing with Thermal, Ultra Sonic or Accustic Vibration, Vacuum or Mechanical test part stressing Analysis and Measurement• Defect Location on test part• Image Integration and Z axis measurement
Fully adjustable Shear Vector: 0-360 ?/0-10 ?
Manual and Auto Cal., real-time readout of FOV, Scale, Shear Vector
100 mw, Class IIIa Laser Product
LaserNDT 1.8.0
