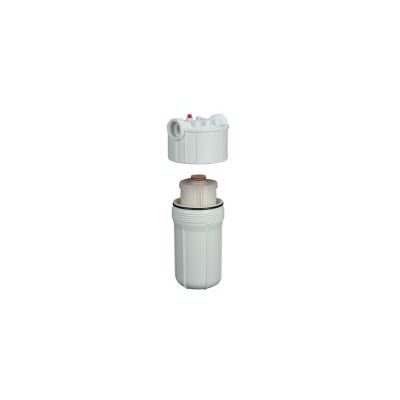

Model 222 -GIANT Cartridge Filter Housings
Patent pending GIANT housing features unique 222 endcap fitting in head, which accepts ONLY 222 style GIANT pleated cartridges available in 0.2, 0.45, 1, and 5 micron, and new Nano-Key filter media.
Most popular related searches
filter housing
high-purity water
cartridge filter housing
pleated cartridge
beverage bottling
chemical recycling
water quality
cartridge filter
filter cartridge housing
water bottling
Features & Benefits
- White talc reinforced polypropylene 222 style head and either clear SAN or white talc polypropylene bowl
- Positive head to bowl “stop” to prevent overtightening
- Full testing to industry standards of the Water Quality Association for burst pressure, water tightness, and fatigue resistance
- Securely retained Buna-N O-ring to ensure effective sealing and eliminate accidental misplacement; other O-ring materials are also available
Applications
- RO prefiltration
- Chemical recycling
- High purity water
- Beverage bottling
Technical Specs
- Fits 4 ½" OD x 10" or 20" length 222 style GIANT® pleated cartridges
- Both 1 ½" and 1" NPT pipe connection size (BSP available)
- Max. operating pressure at 70°F (21°C) - 100 psi (8.8 Kg/cm2)
- Max. operating temperature of 125°F (52°C)
