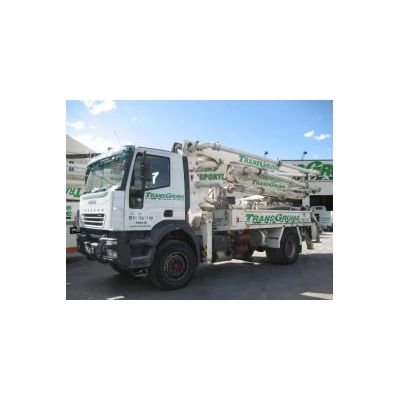

Model 24M -Concrete Pump

SHARE

Specially designed  for interior jobs  with difficult access, such as warehouses, tunnels, under bridges,etc. This is possible  due to the Ion folded height (5m.) and the flexible - X` fold, as well as its small size and high maneuverability.

Most popular related searches
  • Low folded height (5 m.) and the flexible "Z" fold, as well as its small size and high maneuverability.
  • Technical characteristics
  • Horizontal reach: 21 m.
  • Vertical reach: 23,6 m.
  • Depth reach: 14,5 m.
  • Folded height: 5 m.
  • Type of fold: Z.
  • Distance between supports: 5,5 m. front / 2,3 m. behind.
  • Pipeline diameter: 125 mm.
  • Number of arms: 4.
  • Length of end hose: 4 m.
  • Concrete output: 120 m3/H.
