Model 300 Gallon - Sprayer Diaphragm ...

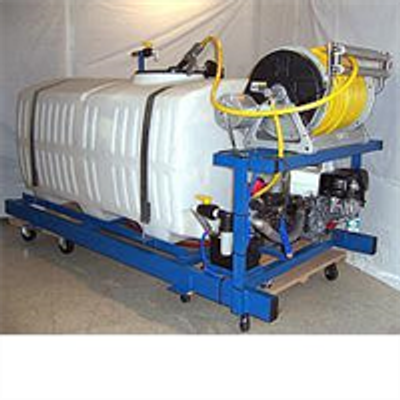

Model 300 Gallon -Sprayer Diaphragm Pump

TANK- 300 Gallon Norwesco Poly with molded in gallonage markings PUMP - Hypro D503, 15gpm Max. 580psi Max., 3 Diaphragms Engine- 8hp Honda 12volt Start with Battery FRAME- Skid Style MIG Welded with Standard Reel Mount REEL- optional AGITATION- Adjustable “High Action” Recirculating Jet REGULATOR - Full Bypass Hypro 550psi Max. GAUGE - Liquid filled, 600psi Max. Misc: Sprayer will have a suction strainer with shut off valve, tank drain with plug, pump will be coupled to engine with a Hypro gearbox.
