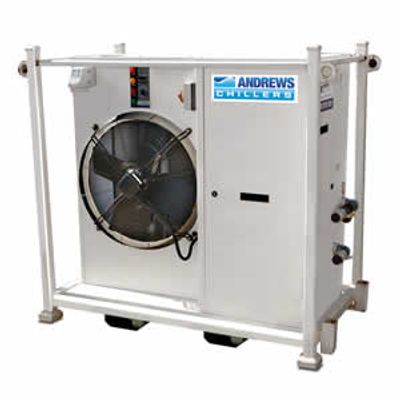

Model 30kW -Fluid Chiller
The 30kW Fluid Chiller is compact but highly efficient and can be used for a multitude of applications. It`s quiet in operation and environmentally friendly - as are all Andrews Chillers. Not only can the 30kW cool it is also available with a Heat pump option, for all year round use. The 30kW chiller is compatible with all Andrews air handling units.The 30kW Fluid Chiller is compact but highly efficient and can be used for a multitude of applications. It’s quiet in operation and environmentally friendly - as are all Andrews Chillers. Not only can the 30kW cool it is also available with a Heat pump option, for all year round use. The 30kW chiller is compatible with all Andrews’ air handling units.
The Andrews Sykes Chiller Hire range of high capacity fluid chillers has been developed to provide a fast and efficient solution for many applications that require high volumes of cooling capacity. In the standard format the Andrews Sykes Chiller Hire 30kW fluid chiller can provide cooling water to production processes or to bypass/assist permanently installed chillers. When used along with our wide range of Andrews Sykes air handlers and fan coils, fluid chillers provide high capacity air conditioning for a wide range of applications. An Andrews Sykes chiller heat pump version is available on the 30kW model to provide not only cooling but also heating.
All of the units in the Andrews Sykes Hire fluid chiller range are air cooled and do not require a permanent water supply. Ideally chillers should always be installed on the exterior of the building, where the ambient air can provide cooling. Each of the units contains a heat exchanger, condenser, control system, compressor and circulating pumps. Mounted on robust base plates complete with lifting facility, the units can be transported and positioned with the minimum of disruption. The water connection on the supply and return pipework is normally achieved with quick action couplings, removing the need for complicated pipe connections. The Andrews Sykes Hire chillers use flexible hoses to provide chilled water to either the air handlers or the clients own system.
The Andrews Sykes Chiller Hire 30kW fluid chiller is part of a complete range of temperature control equipment and ancillaries to satisfy all your cooling requirements both commercial and industrial. Equipment available includes Fluid Pumps, Air Handlers, Heat Exchangers, Buffer Tanks and associated ancillary items.
- Connects to existing pipe work easily
- Quiet operation
- Quick release pipe adaptors
- Economical
- Easy installation
- Can heat and cool large areas
- Environmentally friendly
Environments
- Air conditioning
- Product storage
- Process cooling
- Low temperature applications
- Temperature control
- Disaster recovery
- Scheduled chiller maintenance
- Events and corporate hospitality
- Nominal cooling duty:30 kW 102,360 btu
- Plug type:BS4343 32 A 5 pin
- Power supply:415 V 3 ph N+E 50 Hz Run 19 A/hr
- Average power consumption:10 kW/hr
- Noise level (max):73 dBA @ 10 metres
- Generator size:30 kVA
- Weight:350 kg
- Nominal heating duty (HP version):30 kW 102,360 btu
- Dimension:1,600 x 860 x 1,700 mm
- Water connection:1.25 Camlock
- Control:Automatic programmer
