Model 3109 -Bag Filling System

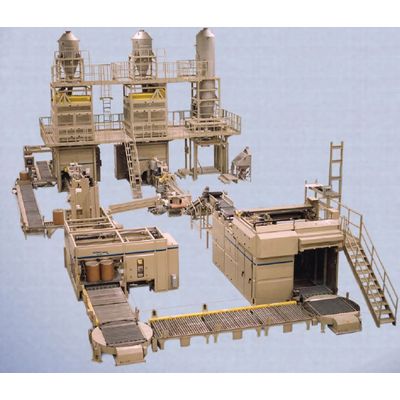

Thiele`s Model 3109 Vertical Auger Bottom Fill Bagging System is a well proven, completely automated packaging system that offers virtually dust free bagging for most fine and light fluid type powders, especially titanium dioxide, dry soy food products and pigments.
Most popular related searches
bag filling system
precision scale
weighing scale
titanium dioxide
bag opener
lifting bag
dust bag
settler
flow modeling
Production Speed
- 2-7 bags per minute
Bag Sizes
- Face Width
- 279mm-483 mm (11" - 19")
- Length
- PBOM: 522 mm - 1041.4 mm (15 in. - 3 ft. 5 in.)
- SOM:508 mm - 1016 mm (14 in. - 3 ft. 4 in.)
- Poly: 508 mm - 1016 mm (14 in. - 3 ft. 4 in.)
- Woven Poly: 508 mm - 1016 mm (14 in. - 3 ft. 4 in.)
Electrical Requirements
- Input Power
- 460 volts, 3-phase, 60 hertz
- 120 volts, 1-phase, 60 hertz
- Control Circuit
- 24 VDC from internal power supply
- Current Draw
- 230/460 Volts (20/10 amps)
Air Requirements
- Operating Pressure
- 80 psi (5.4 atm)
- Line Pressure
- 90 psi (6.1 atm)
- Air Use Per Cycle
- 1.6 scf (45 liters), free air per cycle
- Totally automatic - bag placing, feeding, bag top registration, bag opening, weighing, and bag closing, from start to finish, is as easy as pressing a button
- Servo controlled bag lift with bag settler for bottom up filling, eliminates free fall of the product
- Two stage feed - variable speed auger runs at high speed until the bag is filled to approximately 95% of the desired weight then shifts to a very slow speed to finish weight
- The gross weigh scale features an innovative design for precise scale sensitivity and reduced maintenance (all mechanical interference and wear parts have been eliminated including pivots, flexures, and mechanical beams)
- One piece unitized frame construction
- Programmable touch screen with easy to follow menu driven operation including diagnostic fault and maintenance messaging
