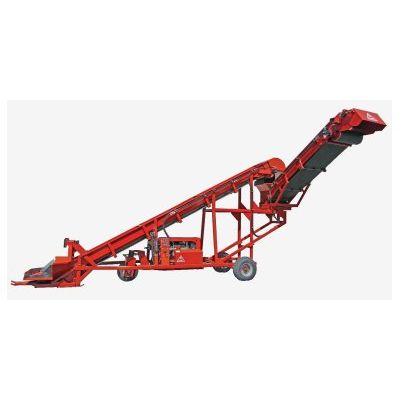

Model 3690 -Rotating Field Elevator
Offering more flexibility while retaining our legendary reliability. We provide high capacity with no damage to the product and more time saving features than ever before. A powered drive wheel with a large flotation tire and smooth steering helps position the 3690 where you need it. Built with flexibility and durability in mind the 3690 Elevator will get your job done quickly and efficiently. The swivel uses a hydraulic motor and worm gear to provide a smooth motion. Adjustable output hood and 180° swivel allows you to put the product right where you want it the first time.
Engine: Tier 4 Final Kohler
Fuel Type: Diesel
Horse Power: 74
Fuel Capacity: 37 gal
Hydraulic Oil Capacity: 30 gal
Belt Width: 36 in
Overall Width: 8 ft
Overall Length: 45.5 ft
Weight: 9400 lbs
Discharge Height: 14.5 ft
Towed Height: 13 ft
Tires: (12 16.5) 12ply
