Laser Technology, Inc.
Model 5100 -Compact Digital Shearography System
All Stress Modes for tripod and gantry integration. Remote Control Camera: Detect defects over a large area with high throughput. Mode of Operation: Digital, Phase Step and Phase Reversal Real-time Subtraction Modes with user set macros. Versitile Applications: Use on tripod, lift, gantry and more. Powerful Image Processing: Real-time imagining of disbonds, delaminations, impact damage and more. Speed: Increase in Aerospace manufacturing productivity. Laser Options: 5100 – 150 mw Laser 5100e – external Laser up to 10 Watts
Most popular related searches
shearography system
test chamber
laser projector
chamber test
compaction system
mobile shear
integrity monitoring
Technical Description

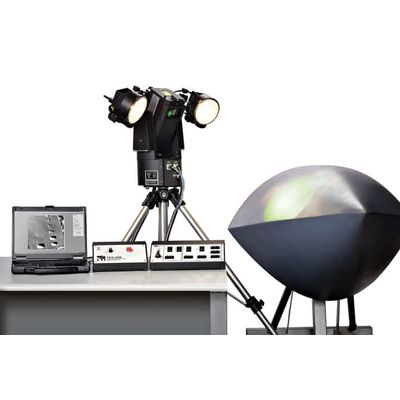

The LTI-5100 is a modular, all mode, digital Shearography Camera System featuring complete remote control of camera pan, tilt, zoom, iris, focus and shear vector as well as laser beam X/Y steering and beam expansion. The LTI-5100 consists of the SC-5100 Digital Shearography Camera with built-in or external laser, Remote Control Console, and the IP-5100 Image Processing Computer, all interconnecting cables, 2 Manuals and a One Year Warranty.
Optional Equipment
- Tripod and Adapter Plate
- MECAD-100, 200 Vibration Stress Units
- ACAD-100, 200 Acoustic Stress Units
- TS-100 Thermal Stress Unit
- Vacuum Windows and Generators
- LTI-9000 Vacuum Test Chambers
- Gantry and Mobile Lift Systems
Shear Camera Dimensions
12.0 x 4.0 x 5.5 in / 30.5 x 10.2 x 14.0 cm
Shear Camera
Digital Phase Stepping Shearography Camera, real-time mode
Sensor
768 x 494 12 bit/30 fps
Power
100 to 240 VAC, 50/60 Hz20 amps maximum (with TES-200)
Operation Modes
All Mode
Shear Vector
Fully adjustable Shear Vector: 0-360 ?/0-3 ?
Measuring Sensitivity
0.05m/ shear distance
Image Calibration
Manual and Auto Cal., real-time readout of FOV, Scale, Shear Vector
Laser Light Source
150 mw, Class IIIa Laser Product
Zoom
F1.0,8 w/2x Converter
Computer and Remote Control Features
Camera Lens: Iris, Focus, Zoom, Shear Vector: X/Y Shear 0-5º, 0-360º Laser: X/Y Steer, Beam Expansion Motion:(Pan350º,Tilt120º) Laser Spot Projector for Precision Image Calibration
Manual Adjustments
Laser Shutter on/off
System Software
LaserNDT 1.8.0
