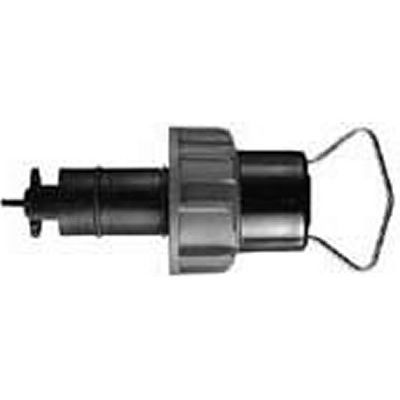

Model 515/2536 Rotor-X -Flow Sensors

Invented over 25 years ago by +GF+ SIGNET, the Rotor-X paddle-wheel insertion-flow sensor is a proven flow sensor. These highly repeatable, rugged sensors offer exceptional value with little or no maintenance required. Installation is simple with +GF+ SIGNET`s comprehensive line of fittings for all pipe materials in sizes from DN15 to DN1000 (0.5 to 36 in.). Output signal of the 515 is a sinusoidal frequency capable of driving a self-powered flowmeter (3-5090). The 3-2536 has a process-ready open-collector signal and can operate to flows as low as 0.1 m/s (0.3 ft/s).
