Model 5200 - Shearography NDT System ...

Model 5200 -Shearography NDT System for Ciritcal Aerospace Components

Easy To Use: Self Contained & Light weight. Powerful Image Processing: Real-time imagining of disbonds, delaminations, impact damage and more. Speed: Increase in Aerospace manufacturing productivity.

Most popular related searches

shearography system

vacuum sensor controller

portable vacuum system

non-destructive testing system

non-destructive testing

level monitoring

compaction system

Technical Description

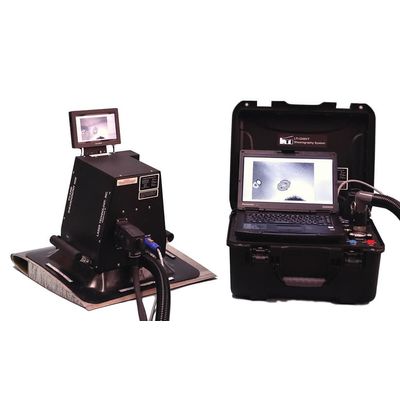

The LTI-5200 is a compact, portable vacuum shearography system designed for large area inspection of aerospace, marine and rail composite and cored sandwich structures and components. The LTI-5200 vacuum attaches in any orientation. Increasing vacuum level allows imaging and measurement of subsurface defects. The system features automatic operation with easily programmed NDE Procedure Macros, automatic exposure and image storage. The LTI-5200 includes the Inspection Head with built-in digital shearography camera and Transit Case, Vacuum Generator/Computer Case, interconnect cables and standard vacuum hose length of 20 feet / 6 meters.

Optional Equipment

Custom adapters for curvature radii less than 28 inches
External Hard Drive for Data Transport (40GB)

Dimensions

Inspection Head

12 x 15 x 14 in. / 30 x 38 x 35 cm

Transit Case

24 x 20 x 28 in. / 61 x 51 x 71 cm

Vacuum Generator/Controller Unit

24 x 20 x 28 in. / 61 x 51 x 71 cm

Weight

Inspection Head

16 lbs. / 7.3 kg.

Transit Case

8 lbs. / 3.6 kg.

Vacuum Gen./ Controller Unit

40 lbs. / 18.1 kg.

Specifications

Shear Camera Dimensions

8 x 9.5 inches / 20 x 24 cm

Power

100 to 240 VAC, 50/60 Hz 15 amps maximum (with TES-200)

Operation Modes

Phase Step Vacuum Shearography, Analysis and Measurement, Image Overlay

Displays (2x)

4 x 6 inches / 10.3 x 15.4 cm
1200 x 800 pixels
32bit color
16 inch / 40cm
1200 x 800 pixels
32 bit color

System Software

LTI-ShearNDT 2.9
