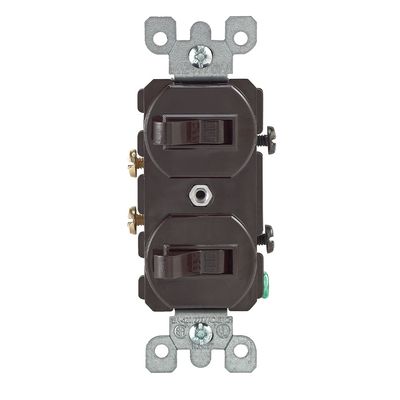

Model 5224-2 -Duplex Style Single-Pole / Single-Pole Combination Switch
15 Amp, 120/277 Volt, Combination switch Single-Pole / Single-Pole AC, Commercial Grade, Side Wired, ground screw - Brown.
Most popular related searches
Brand Features
With Leviton’s extensive assortment of combination devices, you can fill a one-gang space with two switches, a switch and receptacle, even a switch and GFCI. From sensor guide lights to multi-purpose styles and Tamper-Resistant receptacles, we accommodate your every need. These devices come in a range of colors and are backed by a limited two-year warranty. Built to last and designed to save space, these attractively styled devices are at home in any setting.
AC Horsepower Ratings
- HP Rating:1/2HP-120V 2HP-240V-277V
- Max. Amperage:12 Amp
Electrical Specifications
- Dielectric Voltage:Withstands 1500V for 1 minute
- Grounding:Grounding
- Overload UL20 Test:100 cycles of OL at 4.8 times rated current
- Switch Amperage:15 Amp
- Switch Voltage:120/277V AC
- Temperature Rise:Maximum 30 degrees C rise
Environmental Specifications
- Flammability:Rated V-2 per UL94
- Operating Temperature:-40ºC to 65ºC
Material Specifications
- Actuator Material:Thermoplastic
- Body Material:Thermoplastic
- Color:Brown
- Strap Material:Steel
- Product ID:Stamped on Strap
- Terminal Accom.:14-12 AWG
- Terminal ID:Brass-Hot Black-Hot White-Neutral Green-Gnd
- Termination:Side
- Torque Range:12-14 inch pounds
Product Features
- Color:Brown
- HP Rating:1/2HP-120V 2HP-240V-277V
- Warranty:2-Year Limited
Standards and Certifications
- ANSI:C-73
- CSA C22.2 No. 111:File #152105
- NEMA:WD-1 & WD-6
- NOM:057
- UL Standard:UL 20
- Warranty:2-Year Limited
