Model 55055p -Dryers

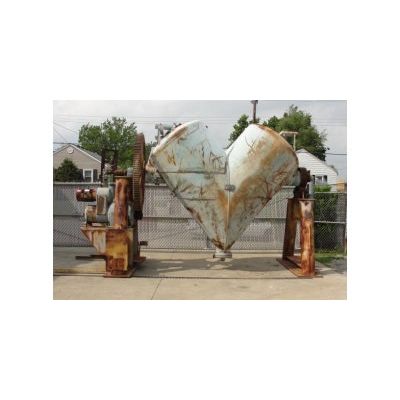

100 cubic foot Patterson Kelly, Twin Shell Vacuum Dryer, jacket is rated for 30 PSI at 250º F, drying chamber is rated for 150 PSI & full vacuum, drying chamber is designed to turn between .96 to 7.66 RPM using a 10 HP Reeves drive, motor is tagged for hazardous location, 56` diameter x 96` outer shell of each chamber, chamber has 18` access panel, 12` bottom discharge, 304 stainless steel contact surfaces, carbon steel jacket, 75 pounds per cubic foot maximum density, 19` 9` long x 83` wide x 10` 1` tall, requires 460 vac 3 phase electrical supply, drawings on file.
