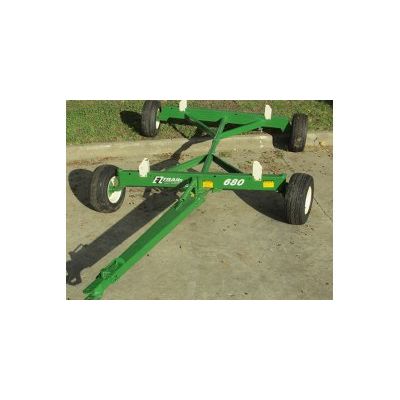

Model 680 -Running Gears

SHARE

Capacity: 6 Ton. Tread Width: 80`. Wheel Base: 91-148`. Axle Height: 21.5`. Axle Rectangle: 3 x 6. Spindles: 1 5/8`. Tongue Lift/Spring: YES. Torsion Reach: NO. Ball Joints: YES. King pin w/ Tapered Roller Bearings: Standard. Hubs: 6 bolt. Standard Tires: 9.5L-15. Stake Width: 38-42. Weight: 630.

Most popular related searches
tapered roller bearing
roller bearing
spindle
waterway

E-Z Trail wagons flex their muscles over terraces and through waterways! There is no terrain too rugged for the triple torsion telescopic reach that stretches from 7` to 15` by fractional increments.

Here`s why E-Z Trail wagons "won`t wag": The kingpin with tapered roller bearings simply keeps the steering as good as new long after others are worn & wagging! Dual Stops: Steering frame strikes both stops simultaneously "before and behind". Exclusive 100% greater over-steer protection.
