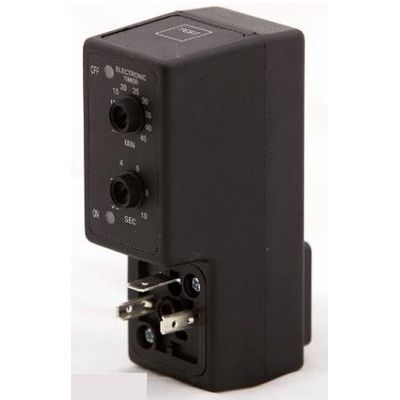

Model 700-01 -Repeat Cycle Solenoid Timer

Upon application of power the timer resets, enters the ON state for a period T1, then switches OFF for a period T2. This cycle repeats until power is removed.

• Type – 700 Series
• Input – DIN 46350-A
• Output – DIN 46350-A
• Tamperproof or Non Tamperproof  available
• Order Ref. – Contact Powerflow for specifics

• 100% Continuous duty
• LED lights to indicate power is ON and to indicate valve is OPEN
• Manual override switches
• NEMA 4 (IP65) enclosure
• Selectable Timing Ranges
• Wide Voltage Range Available
• Test Facility
• Tamperproof & Non Tamperproof Available
• CE, UL, CSA and ISO Certified
• Custom labeling & other colours available
• Customized power leads available (See ‘Power Cords/Cable Assemblies‘)

• Timing Scale:
• T1 Time – Model Specific
• T2 Time – Model Specific
• Supply Voltage:
• 24-240V AC/DC 50/60Hz or 12-24V DC (Standard)
• Other supply voltages available on request
• Current Consumption: 4mA Max.
• Operating Temp.: -10 to +60°C
• Environmental Protection: IP65, NEMA IV
• Switch Capacity: 1 Amp.
• Inrush Current: 10 Amps for 10mSec
• Switching Holding Voltage: 400V
• Duty Cycles: 100%
• Input: DIN 46350-A / ISO 4400
• Supplied: Flat Gasket & screw
• Timing Temp. Coefficient: + or – 0.005% °C
• Scale Accuracy: + or -10%
• Reset/ Test: Manual Touch Switch
• Printed Circuit Board: UL 94V0
• Repeat Accuracy: + or – 1%
• Indicators: LED’s to indicate phases
• Design Standard: VDE 0110C
• Output: DIN 46350-A / ISO 4400
• Optional Extras: Screws / Connectors / Power Cords
