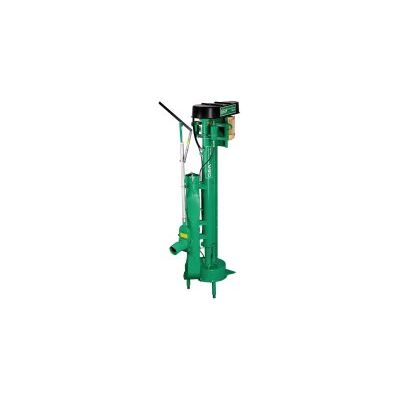

Model 8-Inch -Flush Pump

Low revolutions pump offering a high flow rate and remarkable performance to feed a flush system. The 8` Flush Pump is used when feeding a flush flume system, or to feed flush valves to clean flush alleys or to flush a holding area.

Most popular related searches

Belt driven pump.
Available motors: 7.5, 10, 15, 20, 25, 30, 40 or 50 HP (5.5, 7.5, 11, 15, 18.5, 22, 30 or 37 kW).
8" (200 mm) discharge.
Drive shaft with an antivibration bearing.
Double bearing housing protected by our 3-seal system.
A check valve on the pump discharge keeps the liquid in the flush line between flushes.
Available in lengths from 6 to 16 feet (1.8 to 4.8 m) in 2 feet (61 cm) increments.
Optional 6" (150 mm) nozzle with cast iron valve to recirculate the manure in the pit (As shown on the main picture).

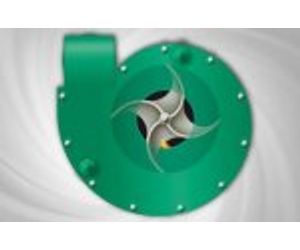

16" (406 mm) impeller with 4 curved blades made of ductile cast iron.
9½" (241 mm) intake with one fixed knife.

Model 8-Inch -Flush Pump

Key Features:

Impeller and Housing
