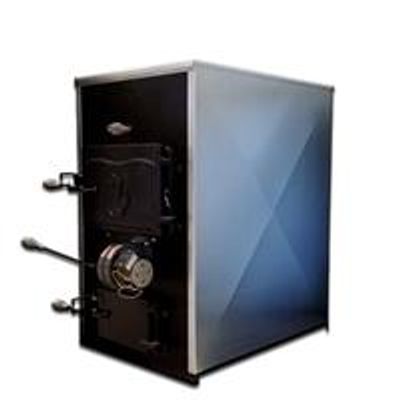

Model 8095 NS -Indoor Residential Wood Furnace

SHARE

The Royall 8095 NS indoor residential wood furnace is a premium furnace for residential applications. Our premium residential indoor furnace can heat your home to any temperature for a fraction of what you are paying now. Our wood furnaces connect easily to any existing conventional air system giving you years of low cost, trouble free service. Start saving money on your heating bill today! These heating capacity specifications are provided as guidelines only and in no way guarantee the output or capacity of the units. The actual BTU output depends on the type of fuel being burned and its condition, the thermostat setting, the draft adjustments and the chimney into which the unit is installed.

Most popular related searches

Draft Options:

  • (1) 50 cfm Forced Draft Fan

Grate System:

  • (1) Cast Iron Front Frame
  • (1) Cast Iron Rear Frame
  • (4) Rocker Grates


Furnace Construction:

  • 10ga and 12ga Steel,
  • High Temperature Powder Coating


Furnace Dimensions:

  • 38" x 22.5" x 41" (HxWxD)


Firebox Capacity:

  • 5.6 Cu Ft


Log Length:

  • 26"

Fuel Loading Door:

  • Cast Iron 10" x 14"

Ash Removal Door:

  • Cast Iron 5" x 7"

Firebrick Requirements:

  • (16) 9” x 4.5” x 1.25
  • (2) 4.5” x 4.5” x 1.25


Rope Gasket:

  • Fuel Door - 4.5’, 5/8” Rope
  • Ash Door - 3.5’, 5/8” Rope

Furnace Flue Size:

  • 8” Diameter Ring with 6” Flue


Furnace Flue To Ground:

  • 31.25 to Center


Approximate Weight:

  • 475 lbs"
