Mud Cat - Model 815 - Diesel Powered Auger Dredge
With over 30 years of design, manufacturing and field experience, LWT understands and embraces the demand for quality, reliability and ease of maintenance in its products and solutions. With this in mind, LWT manufactures the Mud Cat 815 to help remove solids and sediments from applications that require an aggressive dredging operation.
The Mud Cat 815 has been successful in applications such as:
• Industrial Process
• Power Generation
• Environmental Remediation
• Mining

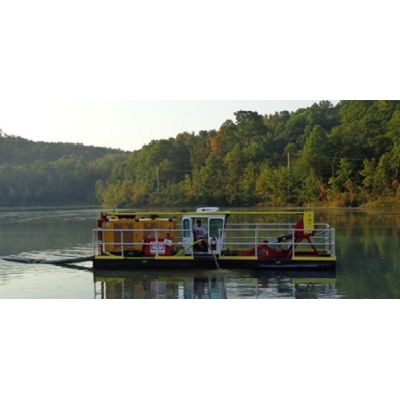

The man-operated Mud CatT 815 features a 225 HP diesel-powered power unit and a hydrostatic high-pressure circuit to drive a submersible pump equipped with a centrifugal vortex style impeller passing 6-inch solids. Principal features include a high-torque single motor horizontal cutter assembly, a triple sheaved traverse winch, and a cylinder controlled elevation linkage for the cutter assembly. The Mud Cat 815’s flotation system is comprised of baffled 10 gauge steel pontoons filled with two-pound density foam and matched with a heavy-duty structural steel frame coated with epoxy paint. A comfortable heated and air conditioned operator cab includes fingertip controls for travel and pump speed.
LWT’s Mud CatTM 815 can be equipped with upgraded options and accessories to optimize its function and capabilities.
Contact your local LWT sales representative or visit our website at www.lwtdredge.com to find out how LWT can benefit you with your next project. We also offer rental dredges for short-term applications.
