Model 9000 -Large Chamber Shearography System

SHARE

Production Shearography /Thermography System for aircraft composites manufacturing.  LTI manufactures the LTI-9000 Vacuum Shearography System that includes the 5100 Shear Camera, Gantry, Part Fixture and Vacuum Test Chamber. Test parts are scanned a section at a time and images may be stitched together in one file.

Most popular related searches
shearography system
test chamber
chamber test
laser safety
industrial safety
control valve
inline inspection
electric control valve
electric valve
industrial noise

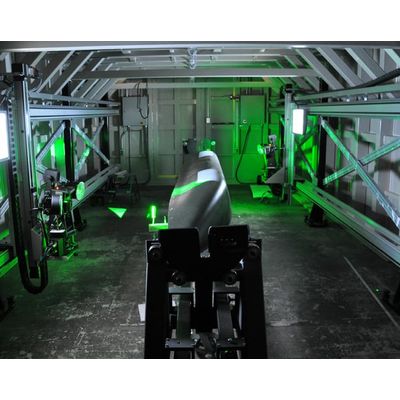

The LTI-9000 Vacuum Test Chamber is manufactured in 8×8, 12×12 ft. cross sections in incremental lengths of 4 feet. Test chambers may be configured to meet your program requirements using modular end door, man-door, and plain sections. Chambers are manufactured complete with blower and control valves, electrical wiring harness, interior lighting and optional closed circuit video.

LTI provides complete installation, certification and training.

Camera Gantry allows vertical and horizontal motion through the full volume of the test chamber and operates in manual or automatic modes with Teach/Learn capability. Test part throughput of 200-500 sq. ft. per hour is typical.

Shearography Vacuum Test Chambers have unique design features optimized for mechanical stability, high cycle rate, low noise, industrial safety, and laser safety. They are typically designed in 4 foot segment lengths, width and height. This design may be changed due to the customer size requirements: The chamber is typically provided with one (1) End Door and, one (1) Side Man Door. Test chambers are designed for a maximum operating pressure differential of 0.3Bar (4.41 psi).

Shearography systems can be adapted to existing scanners where practical and cost effective.

LTI has more experience than any other company in the world building production shearography systems meeting the industry needs for in-line shearography inspection of aircraft and aerospace components. LTI continues to be the leader in the laser shearography industry with the latest in innovations of technology application of software and hardware.
