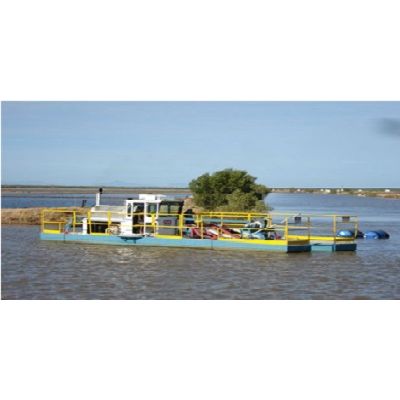

Mud Cat - Model 920 - Diesel Powered Auger Dredge
Throughout the world, the Mud Cat name has a reputation for quality and reliability. In keeping with this high standard, LWT has designed the Mud Cat 920 to help remove solids and sediments from applications that require an aggressive dredging operation with the quality and reliability attributed to the Mud Cat name.The Mud Cat 920 has been designed for applications such as:
• Industrial Process
• Power Generation
• Environmental Remediation
• Mining

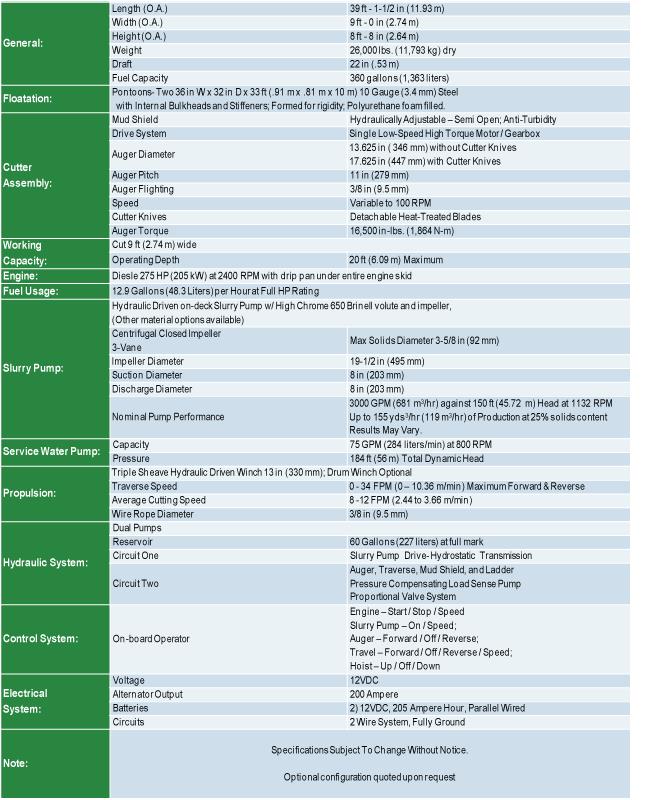

The man-operated Mud Cat 920 features a 275 HP diesel-powered power unit and a dedicated hydrostatic high-pressure circuit to drive an on-deck pump with a nominal performance of 3000 GPM at 150 feet of head pressure, passing 3-inch solids. Principal features include an operation depth of 20 feet, a high-torque single motor horizontal cutter assembly, centrifugal closed impeller, a triple sheaved traverse winch, and a cylinder controlled elevation linkage for the cutter assembly. The Mud Cat 920’s flotation system is comprised of baffled 10 gauge steel pontoons filled with two-pound density foam and matched with a heavy-duty structural steel frame coated with epoxy paint. A comfortable heated and air conditioned operator cab includes fingertip controls for travel and pump speed.
LWT’s Mud Cat 920 can be equipped with upgraded options and accessories to optimize its function and capabilities.
Contact your local LWT sales representative or visit our website at www.lwtdredge.com to find out how LWT can benefit you with your next project. We also offer rental dredges for short-term applications.
