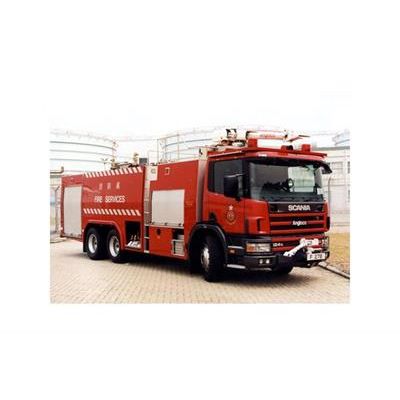

Model 9500 -First Intervention Vehicle

Chassis:
Scania P124GB6x4NZ.
26,000 kg GVW.
360 hp (265 kW).
Automatic transmission.
Two door regular cab with seating for two persons (driver plus one).

Water Tank:
4,000 litre.
Foam Tank:
5,500 litre, plus 200 litre training tank.

Installed Equipment:
High capacity single stage bronze / gunmetal centrifugal water pump, rated at 6,400 litre/minute.
Pump-and-roll operation capability. PTO driven foam pump, rated at 515 litre/minute.
Balanced pressure foam proportioning system, for up to 8% solution mix.
Electronically controlled and programmable remote operated water/foam monitor located at the roof, rated at 4,000 litre/minute.
Remote controlled water/foam bumper monitor, rated at 950 litre/minute.
Two sideline delivery outlets, pressure regulated.
Two powered rewind hose reels, each with 60 m hose and jet/spray fog gun.
Five under-body protection nozzles, each 75 litre/minute.
Ten hydrant water inlet connections.
Pump and systems remote operation from either of three control panels.

Superstructure Bodywork:
Two lockers per side plus rear pump bay, enclosed by anodised aluminium alloy roller shutters.
Roof monitor operator’s recessed working platform, with two access ladders.
Adjustable shelves and hose stowage trays.
Fold-down steps assist access to front lockers.

Accessories:
Two red rotating warning beacons.
Siren with Public Address system.
Side mounted hazard lamps.
24 V electric motor driven foam transfer pump, 60 litre/minute.
