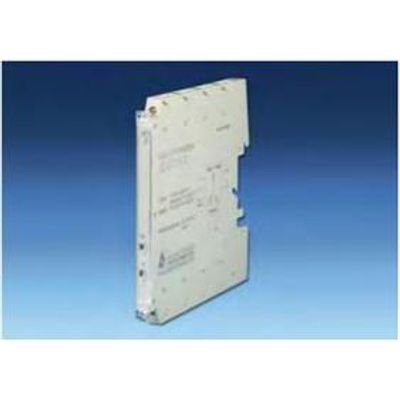

Model AD-STV 2 GX - Isolation Amplifier
From Supply Isolation Amplifier
The isolation amplifier AD-STV 2 GX with integrated transmitter supply, with its construction width of only 6.2 mm, serves the galvanic separation and amplification of transmitter signals (4-20 mA). The 2- or 3-wire transmitter is supplied directly through a galvanic separated supply voltage. The input signal can be selected via a DIP switch. For range change, a manual adjustment is required, the initial values and final values can be adjusted via a trimmer. Input voltage, output voltage and supply voltage are galvanic separated from each other. Due to the narrow design, a high packing density is achieved. In combination with a DIN rail connector, the wiring is considerably reduced.
-
Most popular related searches
Applications
- Supply and data acquisition of 2- or 3-wire transmitter such as pressure transmitter, temperature transmitter and others, with simultaneous amplification and galvanic separation. Can also be used purely as burden amplifier.
