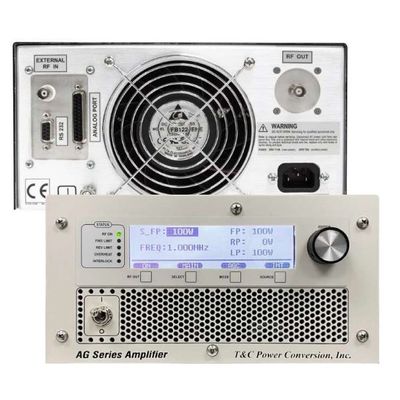

Model AG 1021 -RF Generator & Amplifier
This is a 300 W, Broadband, Class A RF power source, ideal for Industrial / Scientific / Medical applications
Most popular related searches
- 10kHz - 20 MHz broadband operation
- Linear output with low harmonic distortion
- Interfaces: Front Panel Display, Remote (Analog/
- Digital) Interface, RS-232, GUI software
- LCD display: Forward / Reflected / Load Power,
- Frequency, Internal Temperature, & More
- Operation: AGC and MGC Power Leveling, Pulse
- Operation, Sweep and Ramping Profiles
- External RF BNC input for amplifier operation
- Optimized matching with T Series impedance
- transformers (sold separately)
- Air cooled
- Stand-alone or/with mounting hardware (separate)
- 29 lbs. (13 kg)
- H 5.25” x W 10” x L 15”
