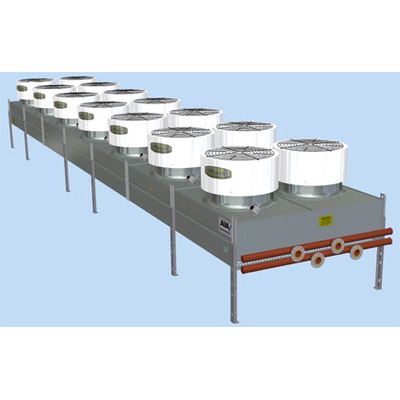

Model AIA X3 -Dry Coolers

Applications: Process cooling, air-conditioning and commercial cooling. Cooling capacity: 35-1044 kW. Fans: Maintenance free EC-fans. Coil: Turbofin 5 aluminium fins 0, 15 mm, copper tubes diameter 12 or 16 mm, fin spacing 2,1 mm. Casing: Powder painted galvanized steel, corrosion class C4. Cooling media: Water/glycol mixes and others. Air direction: Vertical or horisontal. Accessories: Control systems, epoxy-coated fins, extended legs, Whisperer, water spray systems etc.
