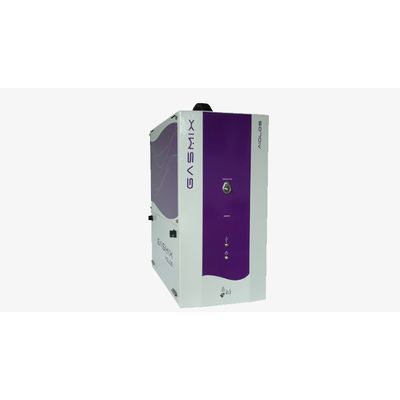

Model AIOLOS -Multi channels GasMix
On-site customized Gas Standard Preparation for single and multipoint calibration standards has never been easier than with the versatile GasMix™ Gas Standard Preparation System. The AlyTech GasMix™ can prepare and automatically inject gases in virtually all kinds of analytical instruments. The principle behind GasMix™ is based on mixing, diluting, and injecting two to twelve gas standards and may be used for a wide variety of applications like analyzer calibration and validation, to odorize natural gas, synthetic gas mixture generation, glove box atmosphere control,reactor gas feeding, sample conditioning prior to analysis.
-
Environmental – Calibration of analyzers for ambient air surveillance in laboratories and on site
-
Petrochemical – Oil & Gas in laboratories
-
Food & Flavor - Quality control
-
Automotive Industry – Engine benchand emission control
-
Specialty gases
-
Electronics industry
- Ease of use
- Resourceful and transportable
- Reduced operator time
- Calibration curves for each gas used
- Compliant with Internationalstandards method 6145
AlyTech GasMix™ software
The GasMix™ software is fully automated allowing for a single injection to run or a fully automated and pre-programmed sequence. The GasMix™ Software can be remotely controlled; it may drive an external injection valve and/or the Start command of an analyzer. An added benefit of the Gasmix is drastically reduced operator time.
The GasMix™ software has a built in audit trail function that ensures a total traceability of the operations carried out.Regular automatic sequences may be saved and recalled at any time.
Dimensions L x W x H (cm): 42x22x46 (16.5” x 8.5” x 18”)
Weight: 14 kg – 30 lbs
Connection: Swagelok 1/8”
Accuracy: less than 0.5% of the flow all over the scale
Dilution: from 0.5 to 100% of the initial concentration
USB Communication- Designed for Windows™ XP SP3
Power Supply: 220 VAC / 2A / 50-60 Hz (110V available)
Inlet Pressure: Gas 3 bars –LPG 1 bar
Max Outlet Pressure: atmospheric, higher pressure possible on request (contact us)
* Note Specifications subject to change without notice
