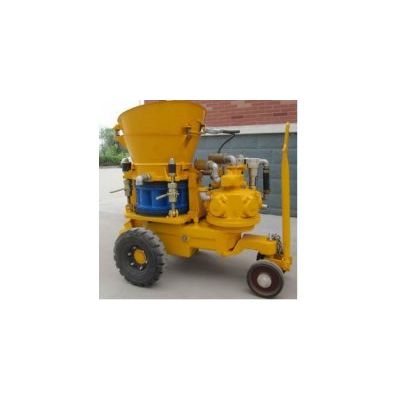

Model Air Driven -Shotcreting Machine
FromGeodrill Master
It is used for dry mix and damp mix, shotcreting in the places without electric power source. It is dependable, easy to maintain, robust, and is long lasting.
Most popular related searches
shotcrete machine
compressed air
slope stability
mining engineering
workplace air
tunnel engineering
tunnelling
Shotcreting for the purpose of
- Tunneling
- Hydro-power engineering
- Mines
- Underground engineering, civil engineering
- Slope stabilization
- Output Capacity: 5 cubic meter/hour
- Maximum Conveying Distance: 200 m (660 ft)
- Ingredient Ratio: Cement/sand and gravel < 0.4mm
- Maximum Aggregate Size: 15 mm
- Inner Diameter of Conveying Hose : 51 mm (2")
- Working Compressed Air Pressure : 0.2 ~ 0.6 MPa
- Conveying Air Consumption : 7 ~ 8 cubic meter / min)
- Air motor power: 5.5kW (7.5HP)
- Dimensions : 1350 x 750 x 1200 mm
- Net Weight: 720 Kg
