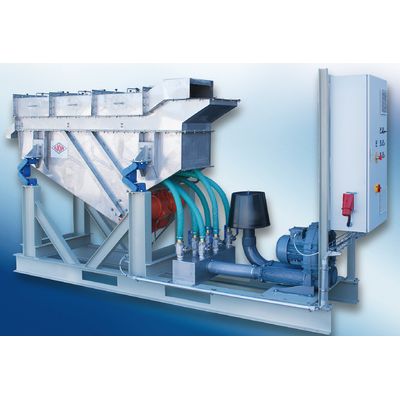

Model AKA-Flow -Dry Separation Machines
AKA-FLOW is a specific equipment within AKW Equipment & Process design offer range, as it utilizes a dry processing route. This is a dry working gravimetric sorting device and used for preliminary separation and enrichment of materials of different densities as a possible pre-stage to the wet mechanical separation processes. Limited availability of water in arid areas requires additions to the wet mechanical processing technology.
The functionality of AKA-FLOW is based on a combination of an air fluidized bed with a specially developed discharging system. Studies with different raw materials have shown outstanding performance both in terms of throughput, as well as classifying and density sorting.The optimum grain size is ranging from 30 urn to 1 (2) mm. Depending on the size of the AKA-FLOW and on the material, throughputs between 3 - 6 t/h and 9 - 18 t/h can be achieved.
- Fully dry working density sorting methods
- Pre-enrichment for subsequent wet-processing
- Enables classification in arid and permafrost areas
- Grain size 30 pm -1 mm
- Pre-treatment to reduce transport costs
- Eco-friendly mining
- Low energy consumption
- Coal
- Stainless steel slag
- Different iron ores
- Various heavy minerals
- Barite
- Primary and secondary sand deposits
- Tantalite ore
- Construction waste
- Mineral sands
