Model AKA-Spin -Spirals Sorting Devices
Spirals AKA-SPIN are sorting devices which separate the materials according to their different densities. They can be used for a grain size range from 60 pm up to 2 mm. with a throughput range per spiral of 1-4 t/h. If a higher throughput is required, 2 or 3 spirals can be combined to form one column.
The slurry (content 10 - 40% solids depending on application) is fed into the spiral from the top. Spread on the spiral bottom, it moves down by gravity. A transverse flow directed inwards on the sluice bottom or outside on the slurry surface, is superimposed to the main flow downwards. This combination results in a separation of the particles contained in the suspension, depending on their density. Particles with a lower specific gravity, such as wood, coal or organic matter, are concentrated in the outer areas of the flow. Particles with a higher specific gravity are directed towards the spiral axis.
- Separation of up to 3 fractions: heavy, middling and light density products
- Wear resistant PU coating of the spiral body
- Light weight and robust design

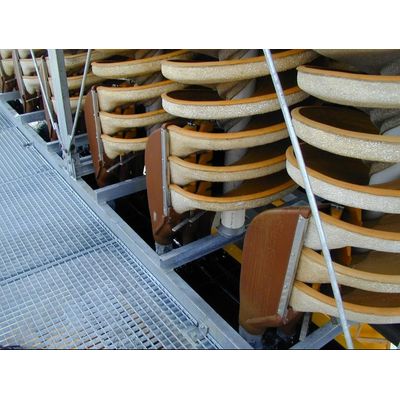

- Spirals can be designed to columns or banks
- Ore and mineral sorting
- Coal processing
- Sand cleaning
- Soil remediation
- Municipal residues
