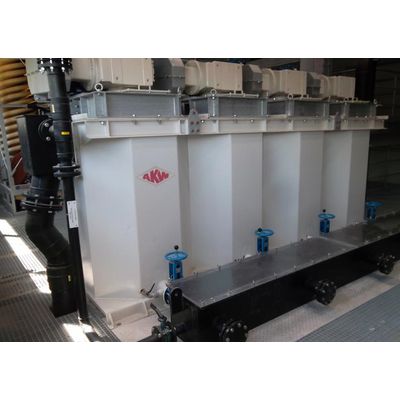

Model AKA-Trit -High Performance Attrition Cells

In a high performance attrition the process conditions can be selectively adjusted by means of on-line measurement of the solids concentration and in addition of diluting water. The efficient measuring and control unit guarantees that the attrition conditions are reliably controlled for the entire duration of the process and thus ensure an effective cleaning action.

• Tank with vertical agitator and V-belt drive
• 2-. 4- or 6-ceII construction with chamber volume each cell 0.5 m3; 1.0 m3; 2.0 m3; or 3.0 m3
• Robust, wear-resistant and low-maintenance constructionin steel/stainless steel with wear protection for tank and agitator (rubber/PU)
• Controlled, defined solids concentration
• Strong motors for reliable operation at high solid concentration

• Processing of ores, minerals and sands
• Wet mechanical purification of contaminated soil
• Conditioning upfront to flotation process
