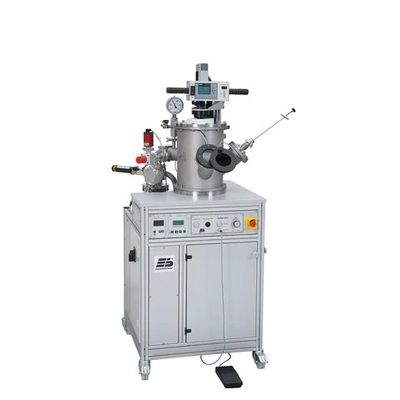

Model AM500 -Arc Melter

Designed for melting samples of up to approx. 500 g at temperatures up to 3500°C, Water-cooled copper crucible plate with multi-purpose moulds, (for button or rod samples, or customized), Water-cooled, double-walled high vacuum chamber, Highly reliable, hydraulic hoist, Motor-driven, water-cooled tungsten electrode which can be moved freely above the crucibles, Excellent observation of the melting process through viewing port(s), Control panel with all major operating functions at the top of the electrode for safe, and convenient operation, Crucible plates with customized molds on request, Contactless ignition of the arc, Powerful arc melting generators for up to approx. 3500°C, High-vacuum pumping and measuring systems, built into the rack system ready for operation.
