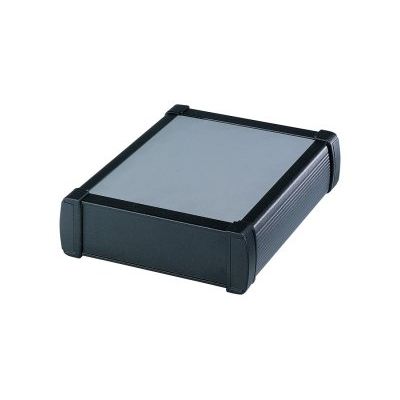

Model AP 51010 -Aluplan Enclosure Profile Set

Colour of enclosure group: Aluplan 50: black, similar to RAL 9005; Aluplan 100: light grey, similar to RAL 7035; special colours on request. Protection class: IP 65/DIN EN 60529. Enclosure material: Extruded profiles: Al Mg Si 0.5 powder-coated; corners: diecast zinc ZnAl 4 Cu 1, powder-coated; corner caps: PA-GF 15, corner seal TPV/TPE; sponge rubber seal (EPDM) in profile groove. Scope of delivery: 2 front profiles including seal, 2 side profiles including seal, 4 diecast corners, 4 corner seals, 4 covers, 16 screws, 4 rubber feet. Please order front panels separately. The smooth outer surface of the front profiles can be used to fit membranes or membrane keypads. Determination of dimensions for AP 50 profile cuts (special dimensions): Length of AP 50 front profile = dim. A – 43 mm, Length of AP 50 side profile = dim. B – 45 mm
