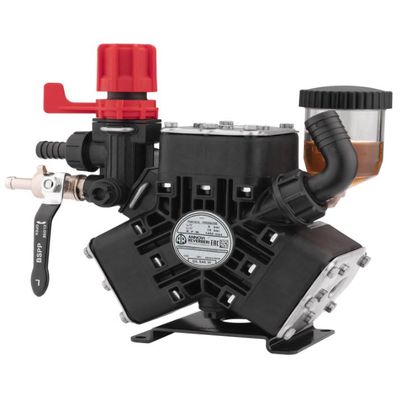

Model AR 20 LFP SP GCI cod. 31611 -Three-Diaphragm Pump
Three-diaphragm pump with reinforced Polypropylene circuit, Kynar/AISI 316 valves (LFP version), AISI 316 diaphragm mounting components, Viton seals. Version: SP (cylindrical with shaft key), CR (reduction gearbox for internal combustion engine), EL (direct coupling to electric motor). Integral or remote Polypropylene pressure regulator with bypassing release lever.
Most popular related searches
- AR Code: 31611
- Version: SP
- Diaphragms: 3
- Max flow (lpm): 20
- Max flow (gpm): 5.3
- Max Pressure (bar): 20
- Max Pressure (psi): 290
- Power (Hp): -
- RPM: 1450
- Net weight (Kg): 4
- Size (mm) - L: 197
- Size (mm) - H: 233
- Size (mm) - W: 295
- Suction (mm): 20
- Outlet (mm): 10
- Max temperature (°C): 60
