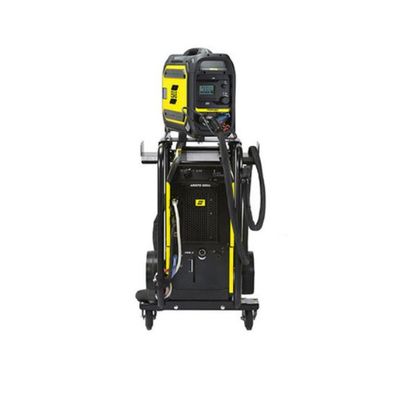

Model Aristo 500ix -Arc Welding Equipment
Aristo 500ix is a portable heavy industrial pulse power source with robust and reliable mechanical design. Together with RobustFeed U6 it is the perfect solution for demanding pulse applications. Advanced pulse functionality reduces heat input and minimizes spatter, Up to 250 pre-programmed synergic lines (U82 Plus), QSet™ intelligent welding system, Crater filling, adjustable burn back time for defect-free weld terminations, Durable and rugged – IP23 rating for outdoor and indoor use in rough environments, Easy-to-use - Clear and intuitive user interface for everyone to get started quickly. Glove-friendly knobs make adjustments quick and easy.
- Industrial and General Fabrication
- Mining
- Railcars
- Mobile Equipment
- Structural Steel Fabrication
- Offshore Oil
- Ship/Barge Building
- Windtower
- Marine and Offshore
- Steel Industry
- Steel Erectors
- Tank and Vessel Fabrication
- Transportation
- Energy
- Pressure Vessels
Voltage: 380-460 V 3, 50/60 Hz
GMAW Welding Output: 500 A / 39.0 V @ 60 % Duty Cycle, 400 A / 34.0 V @ 100 % Duty Cycle
SMAW Welding Output: 500 A / 40.0 V @ 60 % Duty Cycle, 400 A / 36.0 V @ 100 % Duty Cycle
GTAW Welding Output: 500 A / 30.0 V @ 60 % Duty Cycle, 400 A / 26.0 V @ 100 % Duty Cycle
Open Circuit Voltage: 58 V
Power Factor at Maximum Current: 0.91
Efficiency at Maximum Current: 88 %
Standards: CE
Protection Class: IP23
Setting Range MIG/MAG: 14.8 - 39 V (16 - 500 A)
Setting Range MMA/DC: 20.6 - 40 V (16 - 500 A)
Setting Range TIG/DC: 5 - 500 V (10.2 - 30 A)
Operating Temp: -20 to +40 °C
Dimensions, L x W x H: 712 x 325 x 470 mm
Weight: 58.5 kg
