Model ARLA 600 -100% Operational System

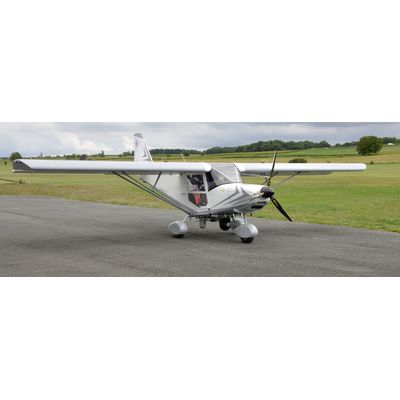

ARLA 600 by ASMAN Technology integrates all the components of a surveillance system : A light aircraft specifically prepared for missions in harsh environments, A suite of on-board sensors (electro-optical gyrostabilized with thermal infrared camera, goniometers and AIS for the real-time position of ships), A mobile ground station, a Rover type portable receiver, A bidirectional and high speed data link allowing control the on-board camera from the ground
An efficient and safe system
- Endurance from 4h to 6h
- Low level of noise and radar signature
- Dual axis autopilot
- « Aircraft » parachute
- All landing strip type capacity
A fast and easy-to-use system
- Maximum speed of 180km/h
- Low stall speed of 64km/h
- Storage capacity in shelter
- Mission system « plug & survey »
- Aircraft ready to operate in less than 20mn
Low operating cost
- 80 euros per hour of flight
- Used gasoline SP98 or 100LL
- TBO : 2.000 hours
- No certification required
Radio coverage and piloting capacity from the ground
The system allows real-time video transmission from the aircraft to a fixed or mobile command center:
- up to 120 km to the ground station
- up to 30 km to the portable station (Rover)
An optronic capacity night and day
- Multi-axis gyro stabilized Gimbal
- Camera full HD 1080p
- Thermal camera cooled or not 640x480
- Optical zoom x30 and digital zoom x36
- Low intensity light mode
- Continuous coverage in azimuth (360 °)
- Elevation coverage from +20 to -120 °
An ergonomic mission system
ARLA 600 comes with an ergonomic mission system AeroMovingMap. User friendly, it eases the feedback of information to the command center.
A 100% autonomous deployment
ARLA 600 can be delivered in a shelter for easy transport and operation.
