Model AT22110 -Waste Solid Tire Recycling Fray Machine

SHARE

The AT22110 is designed for the processing of superelastic and cushion tires , both conical and cylindrical, in lint and rubber powder of various sizes. Thanks to the new construction system, the loading of the rubber is extremely simple and does not require any lifting system. The fraying machine is controlled by an electrical system equipped with a PLC for automating the functions, making it possible for a single operator to easily manage at least two machines at the same time with a significant reduction in labor costs.

Most popular related searches

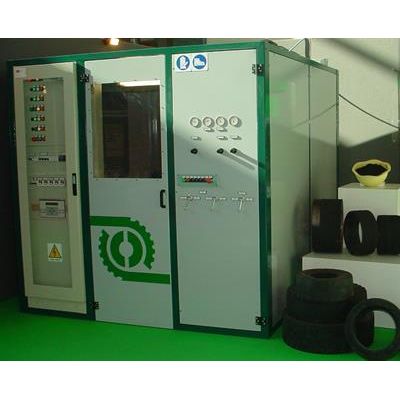

The machine is inserted in a compact cabin (2.2m long X 2m high) and soundproofed which guarantees considerable silence, safety and containment of the material.

Equipped with a hopper and suction system, it collects the produced material and can allocate it in big-basg, demountable containers or silos.

  • Length: 2,500 mm
  • Width: 2,200 mm
  • Height: 2,100 mm
  • Weight: 1,500 kg
  • Installed electrical power: 19 Kw
  • Production Capacity: about 200 Kg / H
  • Maximum workable diameter: 1,100 mm
  • Minimum workable diameter: 220 mm
