Raykol Instruments

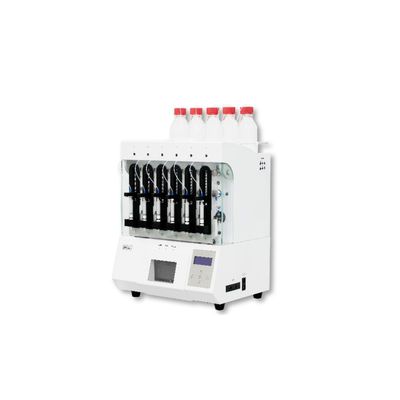

Model AUTO SPE-06D -Automated Solid Phase Extraction System

SHARE

RayKol`s Auto SPE-06D is an automated solid-phase extraction system that is designed for the extraction and concentration of trace organic compounds in aqueous samples, e.g. drinking water, tap water, source water etc. The system automatically conditions, rinses, elutes SPE cartridges and collects and concentrates Automatic sensor endpoint. Compare with vacuum manifold SPE, Auto SPE-06D solid phase extraction workstation saves time, solvent, labor ensuring high reproducibility and productivity for analytical laboratories and improves lab safety by minimizing operator contact with hazardous samples and chemicals.

Most popular related searches
  • Both available in disk or column extraction

  • Simultaneously process 6 samples

  • Built-in concentration module for nitrogen blowing

  • Compact design for fume hood

Parameter Specification
Extraction channel 6
SPE disk size 47mm
SPE cartridge size 3mL, 6mL
Sample volume 10mL to 20L
Solvent capacity 8
Software interface Windows PC; WIFI connection
Voltage 200 to 240V, 50/60Hz
Operating temperature       10 to 40°C
Operating humidity 20 to 80%
