Model AW-D116 -Addressable Annunciator

SHARE
Asenware AW-D117 Addressable annunciator board is a 24 Zone Board, which can be configured at the site as per the Fire Alarm System Layout drawing. It includes keyboard, Power LED and buzzer. AW-D118 is extensions 24 zone board. Both can be used with AW-FP100 Series Addressable Fire Alarm Control Panel. One AW-D117 can be connected with 4 pieces of AW-D118 for maximum 120 zones.
Most popular related searches

SYSTEM FEATURES

  • Three Lines of 40 Character each LCD
  • LED Indication for Alarm, Fault and Supervisory
  • Push Buttons to acknowledge the silence
  • Lamp Test from Key SwitchIP 30 Cabinet

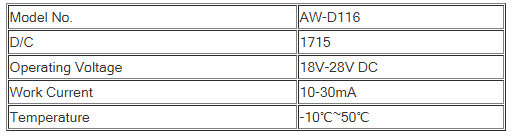

Model Number Description
  • AW-D116 Addressable Annunciator Panel
  • AW-D117 24 Zones Addressable Annunciator Board
  • AW-D118 24 Zones Addressable Annunciator Board Extension
