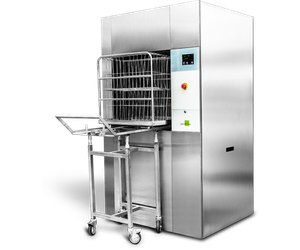

Model Azteca A Series -Large Steam Sterilizers

These models have been sold worldwide in Europe, the Middle East, America, Latin-America, Africa and Asia, and are highly recommended by doctors and professionals.

All components applied have been selected with proper attention, meeting the highest quality standards’ requirements from known leading companies with the most advanced technologies around the world.

The vessel is a double fully jacketed square chamber, made of corrosion resistant stainless steel 316 L, which conforms to the Pressure Equipment Directive (PED). The sterilizer’s framework, piping and housing are also made of stainless steel. The highly efficient, high quality Hanno-Tech insulation material releases no particles; hence the Azteca A Sterilizers can be used under clean room conditions. The advanced insulation technology further contributes to the high energy efficiency of the units.

The autoclave can be supplied with either 1 or 2 pneumatically operated vertical sliding door(s). The automatic vertical sliding door’s movement stops immediately if it is obstructed and goes back to the opened position. Special safety features prevent the door from opening when the chamber is pressurized or when the temperature is high. In double door units both doors cannot be opened at the same time, and clean side door only opens, after a sterilization cycle has been completed successfully.

The Azteca A sterilizers use steam under pressure as the sterilizing agent for wrapped or unwrapped goods such as fabrics, surgical instruments, utensils, and other heat and moisture stable materials at temperatures from 121°C to 134°C. The units can be equipped with internal steam generator to enable faster cycles with efficient energy consumption, and eliminate the dependence on an external steam source and its steam quality. The air removal is done by a powerful vacuum system, using a liquid ring vacuum pump and a condenser. All autoclaves are standard supplied with a water saving system to reduce the amount of water during the sterilization cycles.

Through the numerous safety features, the Azteca A sterilizers meet the highest standards and requirements for quality, safety and operation (EN 285 – Large Steam Sterilizers standard; Pressure Equipment Directive (PED); Medical Device Directive MDD 93/42/EEC; EN 60601-1, EN 61010-1 and EN 61326 safety standards, etc. and CE 0473 approved by a British notified body).

A microprocessor based control system; state of the art Freescale technology automatically controls all operations. The system includes a digital color touch-screen LCD display, communication, self and remote diagnosis and PC connection for external documentation and printing, ensuring a reliable, safe and user-friendly operation. The displayed information is available for users in a variety of languages.

Azteca A Series offer 7 preset cycles, 5 sterilization cycles and 2 test cycles to assure a proper sterility level. Up to totally 20 cycles can be custom designed according to the users’ needs.

With a range of accessories these autoclaves can be easily customized according to the customer’s requirements.

The design of all internal and external components together with the self-diagnostic system ensure easy maintenance, resulting reliable service and performance and satisfied operators.

Within the health-care services, sterilization of medical supplies is an essential issue in the battle against the advance of many infectious diseases. In order to improve the quality supply, international standards, which specify the requirements for the equipment, and procedures in the sterilization departments in health care facilities, have been developed. Celitron’s Azteca A autoclaves provide the best solution for hospital’s central sterilization departments, clinics, as well as pharmaceutical and bio-technological industries.
