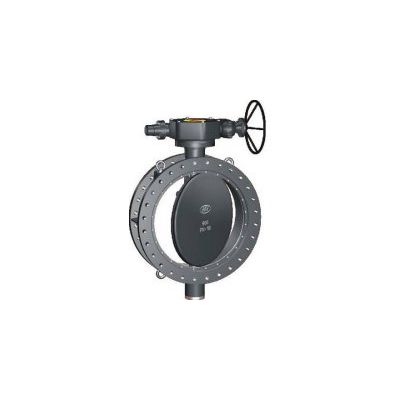

Model BDK -Eccentric Butterfly Valve
BDK Eccentric Butterfly valve for regulation and control in water treatment, desalination, power, steel, chemical and process plants.
Most popular related searches
eccentric butterfly valve
butterfly valve
isolation butterfly valve
isolation valve
desalination energy
water treatment
chemical process plant
water desalination treatment
water desalination
water desalination chemical
APPLICATION
- Regulating and Control
- Models 12, 12L, 44, 44L, 81 & 85F
- Seat for Model 12 - Single piece phenolic back up seat
- Seat Profile for Model 12 - Cosine wave on the sealing area for low operating torque
- Blow Out Proof Steam - Outside the pressure boundary
- Disc Stem Con. For Models 12 / 44 - Hexagon for positive drive
- Seal Design for Models 81 / 85F - Seal retainer less design for uniform sealing
ansi class rating
Design standard
- Class 150, 300
- BS EN 593, AWWA C504
- 32mm (1¼") to 2400mm (96")
- Body: CI, DI, WCB, CF8, CF8M etc
- Discs: CI, DI, WCB, CF8, CF8M, even rubber lined
- Seats: Natural and synthetic rubbers
- Wafer
- Lugged
- Double Flanged
